SplintER Series: Punched a Wall

X ray boxer's fracture

A 27-year-old male presents to the ED with left hand pain after punching a wall. He has pain and swelling on the ulnar side of the dorsal hand. The above hand radiographs were obtained (image courtesy of Mark Hopkins).

This patient has a fracture of the 5th metacarpal neck, otherwise known as a Boxer’s fracture. It is so named because a majority of these fractures come from punching an object [1].

  • Pearl: Unlike most hand and wrist fractures, metacarpal fractures are more likely to occur from axial loading than from a fall onto an outstretched hand (FOOSH) [1].

1. Skin:

  • Closely observe for any breaks on the dorsal surface, especially near the MCP joint, as this can indicate an open fracture which would require operative irrigation, debridement, and antibiotics.

2. Angulation:

  • Observe for any obvious malalignment. Dorsal angulation may cause depression of the MCP joint and disappearance of the normally appearing knuckle [1].

3. Neurovascular:

  • As always, any neurovascular deficits should prompt surgical consultation.
  • Pearl: Given the tight fascial layers of the hand, keep compartment syndrome in mind.

4. Rotational Alignment:

  • Observe by having the patient make a fist and checking for proper finger alignment. Extending lines from the fingers should show eventual convergence at the scaphoid. Any degree of malrotation warrants urgent surgical consultation [3].

Image of hand malrotation

Opinions vary, but most agree that any angulation beyond 30 degrees at the metacarpal neck requires reduction [1].

  • PEARL: Anesthesia can be achieved by an ulnar nerve or hematoma block, with reduction accomplished by applying dorsal pressure with the MCP, PIP, and DIP in flexion.

Patients should be placed in an ulnar gutter splint. They can follow up with a hand specialist as determined by institutional policy as an outpatient in 1 week.

  • Pearl: Studies have shown that patients with less than 60 degrees of angulation can be managed non-operatively and expect a full functional recovery. Cosmetic defects may occur, but are often preferable to surgical intervention if function is kept [4].
  • Pearl: If the fracture is comminuted, significantly angulated, malrotated, or intraarticular, educate the patient the possibility of surgical fixation [4].

References

Looking to bone up in general? Check out the SplintER archives. Want more information on hand radiographs? Check out SplintER Series: Case of a First Metacarpal Fracture or Trick of the Trade: Reducing the metacarpal neck fracture.

  1. Malik S, Herron T, Rosenberg N. Fifth Metacarpal Fractures (Boxer’s Fracture). In: StatPearls [Internet]. Treasure Island (FL): StatPearls Publishing; 2020 Jan. PMID: 29261999
  2. Nakashian MN, Pointer L, Owens BD, Wolf JM. Incidence of metacarpal fractures in the US population. Hand (NY). 2012;7(4):426-430. PMID: 24294164
  3. Yang S, Kim JP. Hand Fractures. J Korean Fract Soc. 2018 Apr;31(2):61-70. DOI: 10.12671/jkfs.2018.31.2.61
  4. van Aaken, J, et al. Fifth metacarpal neck fractures treated with soft wrap/buddy taping compared to reduction and casting: results of a prospective, multicenter, randomized trial. Archives of Orthopaedic and Trauma Surgery: Including Arthroscopy and Sports Medicine. January 2016 136(1):135-142. PMID: 26559192
By |2020-10-13T21:51:54-07:00Nov 4, 2020|Expert Peer Reviewed (Clinical), Orthopedic, SplintER|
Read More

SplintER Series: Pain in the Snuff Box

Scaphoid Fracture

A 16-year-old male presents to the ED after injuring his wrist during a track meet. The patient was running hurdles when he fell forward, planting his wrist into the ground. The imaging is shown below (courtesy of Dr. Hani Makky ALSALAM, Radiopaedia.org).

Scaphoid fracture (Image 2).

  • Pearl: The scaphoid is the most frequently fractured carpal bone [1,2].
  • Pearl: Fractures occur at the waist, proximal third, and distal portion: 65%, 25%, and 10% respectively [3].

Image 2. Fracture of scaphoid. Case courtesy of Dr. Hani Makky ALSALAM, Radiopaedia.org, rID: 10398 (arrow added by authors).

Occurs when there is an axial load across hyper-dorsiflexed, pronated and ulnar deviated wrists or from a fall on the outstretched hand (FOOSH) [1-3].

Snuff box tenderness, scaphoid tubercle tenderness over the volar aspect of the wrist, and/or positive scaphoid compression test (pain reproduced with an axial load applied through thumb metacarpal) [4-6].

Snuff Box

Image 3. Location of scaphoid tubercle (S) at the base of the thenar eminence (left) and the location of the snuffbox (SB) on the radial aspect of the wrist (right). Images by authors.

Plain film imaging with anterior-posterior, oblique, and lateral views to assess for injury.

  • Pearl: There is also a scaphoid view that is recommended if the department technician is trained. This image is a posterior-anterior view of the scaphoid that is obtained with the wrist in ulnar deviation [7].

Abnormal exam: If not neurovascularly intact or if there is an open fracture, consult orthopedics in the ED.

Identified scaphoid fracture: Thumb spica splint and prompt orthopedic follow-up usually within 1-3 days as though some fractures only require immobilization for treatment; surgery may be required for some fracture patterns [1-3,6].

Suspicion for fracture without radiographic evidence: Place in thumb spica splint and repeat imaging in 14 days to evaluate for occult fracture. If negative again at that time with high clinical suspicion, the patient should have an outpatient MRI [1-3,6].

  • Pearl: Initial imaging can miss 5-20% of fractures [8].

Classic complications include vascular necrosis (AVN), and scaphoid nonunion advanced collapse (SNAC). Associated fractures and dislocation of the surrounding carpal bones, distal radius, ligamentous disruption may be seen as other pathology occurs secondary to a FOOSH [1-4,6].

  • Pearl: AVN is of high concern and directly correlated to the site of fracture. The scaphoid receives blood supply via retrograde flow – the more proximal the fracture, the higher the risk of AVN [1-4,6].
  • Pearl: SNAC occurs when the proximal scaphoid remains attached to the lunate and the distal fragment rotates into flexion. This results in early osteoarthritis between the distal scaphoid and radial styloid, leading to pain and decreased functionality [9].



References & Resources:

For a review of other causes of traumatic wrist pain check out the SplintER archives.

  1. Tada K, Ikeda K, Okamoto S, Hachinota A, Yamamoto D, Tsuchiya H. Scaphoid Fracture–Overview and Conservative Treatment. Hand Surg. 2015;20(2):204-209. PMID 26051761.
  2. Sabbagh MD, Morsy M, Moran SL. Diagnosis and Management of Acute Scaphoid Fractures. Hand Clin. 2019;35(3):259-269. PMID 31178084.
  3. Gupta V, Rijal L, Jawed A. Managing scaphoid fractures. How we do it?. J Clin Orthop Trauma. 2013;4(1):3-10. PMID 26403769.
  4. Basu A, Lomnassey LM, Demos TC, et al: Your Diagnosis? scaphoid fracture. Orthopedics 28:177, 2005. PMID 15751361
  5. Watson HK, Weinzweig J. Physical examination of the wrist. Hand Clin. 1997;13(1):17-34. PMID 9048180.
  6. Stapczynski, JS, Tintinalli, JE. Wrist injuries. In Tintinalli’s emergency medicine: A comprehensive study guide, 8th Edition. New York, NY: McGraw-Hill Education; 2016: 1853-1854
  7. Cheung GC, Lever CJ, Morris AD. X-ray diagnosis of acute scaphoid fractures. J Hand Surg Br. 2006;31(1):104-109.PMID 16257481.
  8. Ashmead D 4th, Watson HK, Damon C, Herber S, Paly W. Scapholunate advanced collapse wrist salvage. J Hand Surg Am. 1994;19(5):741-750. PMID 7806794.
  9. Moritomo H, Tada K, Yoshida T, Masatomi T. The relationship between the site of nonunion of the scaphoid and scaphoid nonunion advanced collapse (SNAC). J Bone Joint Surg Br. 1999;81(5):871-876. PMID: 10530853.
  10.

By |2020-10-14T16:26:34-07:00Oct 28, 2020|Expert Peer Reviewed (Clinical), Orthopedic, SplintER|
Read More

SplintER Series: A Case of Inability to Move the Knee

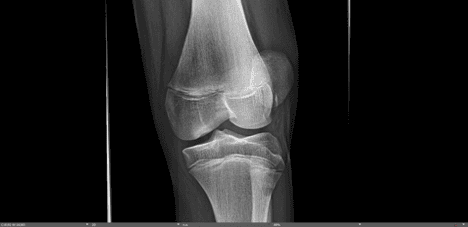

Normal knee radiograph

29-year-old F presents to ED with acute onset knee pain. Reports hearing an audible “pop” after twisting her leg while running down the stairs at home. She explains that her right knee is stuck, and she can neither flex nor extend it. An image is shown below (courtesy of Andrew Murphy, Radiopaedia.org)



(more…)

By |2020-10-19T12:01:15-07:00Oct 21, 2020|Expert Peer Reviewed (Clinical), Orthopedic, SplintER|
Read More

SAEM Clinical Image Series: Knee Pain

knee

A fifty-six-year-old male with a past medical history of legal blindness and remote right quadricep tendon rupture presents to the emergency department via emergency medical services (EMS) after a mechanical fall, complaining of left knee pain. According to the patient, he is in his regular state of health and was walking with his cane when he had a mechanical fall on the sidewalk after tripping on an unknown object and falling onto his left knee.

The patient did not hit his head, did not lose consciousness, and has no head, neck, or back pain. The patient states that he fell directly onto his knee and felt a popping upon hitting the ground, and remembers all events surrounding the incident. The patient was not ambulatory prior to coming to the emergency department.

(more…)

By |2020-10-17T21:39:44-07:00Oct 19, 2020|Academic, Emergency Medicine, Orthopedic, SAEM Clinical Images, Ultrasound|
Read More

SplintER Series: A Collision at the Plate

Proximal avulsion fracture

A 17-year-old male baseball catcher presents with right knee pain after an opponent slid into home plate, striking the anteromedial aspect of the patient’s knee while it was in extension trying to block the plate. An x-ray of the tibia and fibula was obtained (courtesy of Dr. Haytham Bedier, Radiopaedia.org).

This is a proximal avulsion fracture of the styloid process of the fibula, indicating injury to the posterolateral corner (PLC) of the knee [1].

  • Pearl: In most cases, the avulsed fragment is attached to the lateral collateral ligament and/or the biceps femoris [2].

This injury usually occurs from varus stress in a hyperextended knee- think a blow to the anteromedial tibia with the knee in extension [2].

The arcuate sign is a horizontal linear lucency through the head of the fibula that represents a fracture of the styloid process [3].

  • Pearl: This injury may be confused with a Segond fracture, which is a small avulsion fracture fragment from the lateral tibial plateau associated with anterior cruciate ligament injury.

A proximal fibular avulsion fracture is commonly associated with injury to the posterior cruciate ligament, anterior cruciate ligament, popliteus, or meniscus. It is frequently seen with bone contusions and sometimes a tibial plateau fracture [2].

  • Pearl: Injury to the common peroneal nerve may occur as well. Remember to perform a thorough neurovascular examination [1].
  • Pearl: This fracture is a sign of posterolateral instability and likely internal derangement of the knee. Outpatient MRI can be used to evaluate the soft tissue components of the injury and diagnose associated injuries [2].

This injury indicates potential significant instability of the knee and requires outpatient follow-up with MRI. Operative management will be dictated on an individual basis, after evaluating MRI results. In the emergency department, place the patient in a knee immobilizer and recommend non-weight-bearing status until further imaging. Follow-up with orthopedics or sports medicine within 1 week.

  • Pearl: As always, perform a thorough neurovascular examination and consult orthopedics immediately if there is evidence of compromise. If your exam demonstrates significant instability and you are concerned about a spontaneously-reduced knee dislocation, consider ankle-brachial indices and/or further vessel imaging.

If diagnosis of this injury is delayed, posterolateral instability may develop. If not recognized and managed appropriately, this may hinder the success of a cruciate ligament reconstruction [1].



References and Resources:

Want more information about the knee exam? Check out the SplintER archives.

  1. Shon OJ, Park JW, Kim BJ. Current concepts of posterolateral corner injuries of the knee. Knee Surg Relat Res. 2017;29(4):256-268. PMID: 29172386
  2. Juhng SK, Lee JK, Choi SS, Yoon KH, Roh BS, Won JJ. MR evaluation of the “arcuate” sign of posterolateral knee instability. Am J Roentgenol. 2002;178(3):583-588. PMID: 11856678
  3. Strub WM. The arcuate sign. Radiology. 2007; 244(2):620-621. PMID: 17641383

By |2020-10-15T11:28:02-07:00Oct 14, 2020|Expert Peer Reviewed (Clinical), Orthopedic, SplintER|
Read More

SplintER Series: A Pain in the Elbow

Little League Elbow

A 12-year-old male pitcher for a traveling club baseball team complains of acute worsening of right elbow pain that has been bothering him for 3 months. The radiograph is shown below (Frontal elbow view. Case courtesy of Dr. Levente István Lánczi, Radiopaedia.org, rID: 46853). What is your diagnosis? What causes this injury? What patient demographic is most susceptible to this injury? How can this injury be prevented? What is the management of this injury in the Emergency Department?



(more…)

By |2020-09-17T14:17:11-07:00Oct 7, 2020|Expert Peer Reviewed (Clinical), Orthopedic, SplintER|
Read More

Announcing ALiEMU SplintER Course: Approach to Splinting

ALiEMU Course Approach to Splinting badge

We are so thrilled to announce that we created an ALiEMU Course on the Approach to Splinting, using one of our most popular series, the SplintER Series, as the learning foundation. We have created a custom quiz assessing the learning objectives. Are you a medical student getting ready for your EM rotation or internship? Or an EM resident needing to brush up on your splinting knowledge? Take this free course for 2 hours of ALiEMU course credit, and receive your “Approach to Splinting” badge.

(more…)

By |2020-11-05T18:30:58-08:00Sep 9, 2020|ALiEMU, Orthopedic, SplintER|
